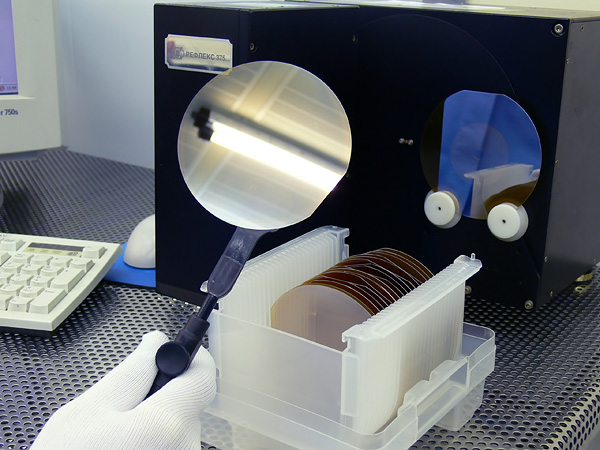

Silicon on Sapphire (SOS) Epitaxial Wafers

Epiel provides Silicon Epitaxy on ultrapure R-plane sapphire substrates. Silicon on sapphire epiwafers are mainly used as substrates for manufacturing electronic devices used in sensors, telecommunications, optoelectronics and other applications.

Common applications include:

  • Pressure sensors
  • ICs

Lattice mismatch is the largest problem in silicon on sapphire growth causing structural defects in the transition from substrate to layer. Epiel's proprietary technology for epitaxial deposition of silicon on sapphire substrates enables the growth of low-defect ultra-thin monocrystalline doped layers suitable for integrated circuit manufacturing.

Tipical layer thickness is less than 1 micron. Silicon on sapphire epiwafers are available in 76, 100 and 150 mm sizes. 200 mm is available at special request.


Contact Sales

Phone: +7 (499) 995 0049
E-mail: sales@epiel.ru

Parameters range for Silicon on Sapphire (SOS) Epi Wafers
Wafer diameter 76 mm, 100 mm, 150 mm
Orientation (1012) ± 1º (R-plane)
Substrate dopant -
Epi-layer thickness, µm 0,3 – 2,0
Epi-layer dopant Phosphorous, Boron
Epi-layer resistivity, Ohm.cm
n-type according to spec.
p-type 1,0 – 0,01

Send Request
